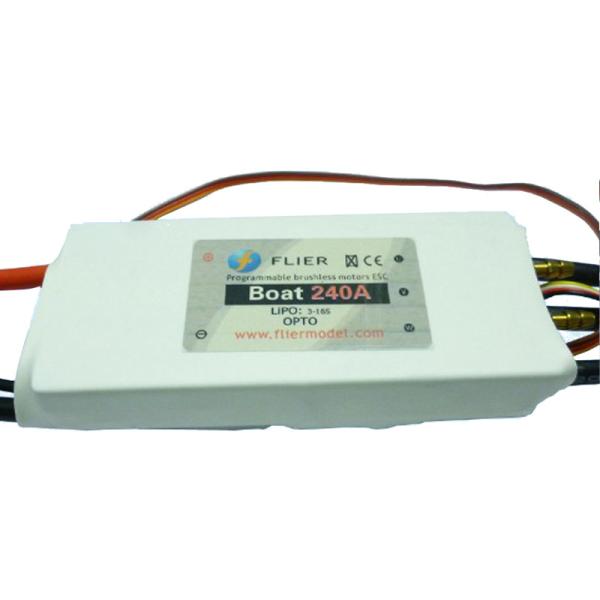

HV 16S 240A Brushless Powerful ESC With White Heat Shrink for RC Boat Efoil
Basic information:
| Voltage | Current | Size(mm) | weight(g) | BEC (Volts/Amps) | Box Programming support | Computer Programming support | Firmware update | |
| |
| 4-16S | 240A | 156*57*35 | 387g | OPTO | Yes | Yes | Yes |
|
Feature:
The firmware is upgraded recently .
ESC Max voltage is 16S, 1S=4.2V.
Two way communication while connecting it with computer.
The unmanned electromechanical adjustment has a total of five lines. 3 at one end, 2 at the other end, 3 with the motor connected to 3 lines, no matter whether it is positive or negative.
As long as the direction of rotation is reversed, any two wires can be exchanged. The other two are power cords, which are directly connected to the battery. Forgot to have a thin servo plug, this is directly connected to the flight controller or receiver.
Setting function value:
1. Reverse: On/Off.
2. Timing:0°,1°,2°,3°,4°……30°.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting function value by youself.
