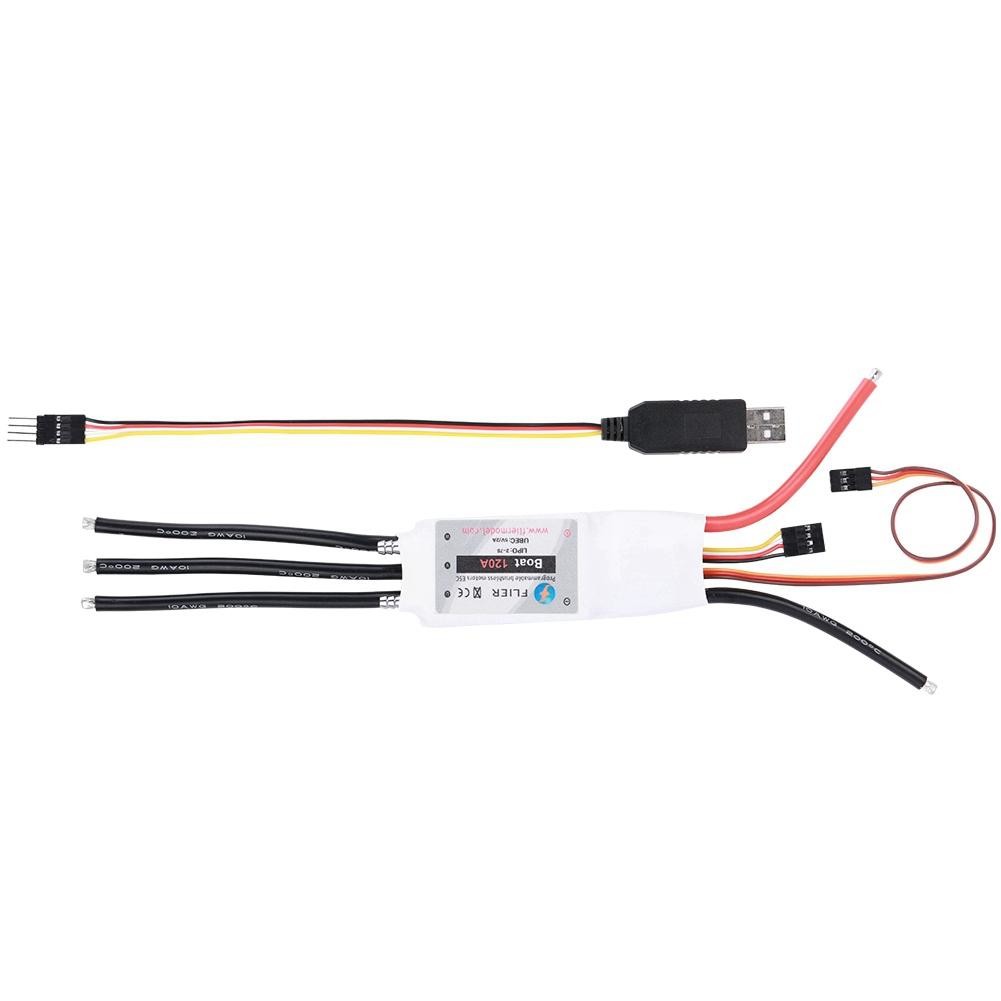

ESC 3-7S Lipo 120A ESC 5V/2A BEC Brushless Speed Controller
Basic information
| Voltage | Current | Size(mm) | weight(g) | BEC (Volts/Amps) | Box Programming support | Computer Programming support | Firmware update |
| 2-7S | 120A | 95*28*32 | 150g | 5V/2A | Yes | Yes | Yes |
Feature:
1. Design for RC Efoil, more functions
2. Battery voltage from 12V to 28V for super high voltage version.
3. Two way communication while connecting it with computer.
4. Firmware can be upgrade by user.
5. Motor cable can be inspected while Connecting the power battery
6. Simply set function value by Prog-Box or by PC via USB link wire.
7. Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.
8. Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V
9. Reverse function. the delay time of reverse is adjustable
10. The power of the motor forward/ reverse can be set.
11. Automatically detection the throttle route or can be set a fixed number by manual operation.
12. Auto cut off the power within 3 seconds if no radio signs.
13. Timing setting may be adjusted (0°-30°) to suit the motor type.
1. Reverse: On/Off.
2. Timing:0°,1°,2°,3°,4°……30°.
3. Frequency: 8KHz, 16 KHz, 32 KHz.
4. Acceleration: Soft / Medium / Hard.
5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.
6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.
7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.
8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.
9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V
10. Cut Off Type::Slow down,Hard. l
11. Power limited forward: Off, 75%, 50%, 25%.
12. Power limited reverse: Off, 75%, 50%, 25%.
13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.
14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.
15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.
16. Throttle curve: Logarithmical,Linear,Exponential.
17. Rotation direction: Left, Right.
18. Timing monitor (TIMING MONTITOR): ON, Off.
Note:the red mark is the factory default value,you can setting function value by youself.
Trade Terms:
1. Payment :T/T ,Paypal,West union .
2. Production lead time :5 days for 100-200 pcs ,10days for 200-300pcs .
3. Sample can be delivered within 3 days.
4. Discounts are offered based on order quantities .
5. MOQ: 2 pcs.
Shipping&Return:
1. Items will be shipped within 3 business day after payment completed received.
2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.
3. Warranty Period is 2 yrs for this item.
4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.
5. All emails will be answered within 1 working day.
