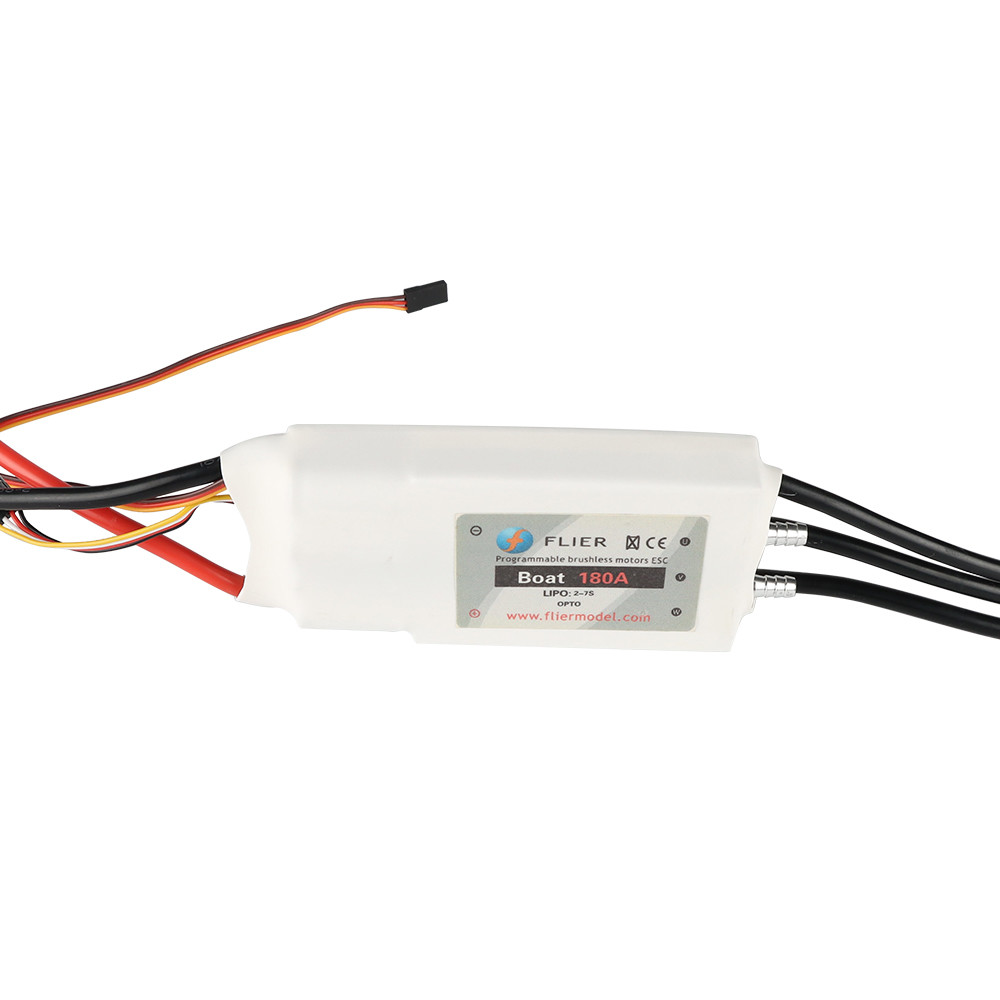

Lipo Battery Brushless RC Boat ESC 7S 180A With Reverse Function

Shenzhen Flier Electronic Co., Ltd.
Contact Now

Lipo Battery Brushless RC Boat ESC 7S 180A With Reverse Function

Brand Name : Flier

Model Number : F-7S-180A-B

Certification : CE

Place of Origin : China

MOQ : 2

Price : Negotiable

Supply Ability : 1000pcs

Delivery Time : 7

Packaging Details : each packed into OPP bag,then packed into Carton Box or according to your requirement

Material : Vinyl

Color : white

Type : boat

Wire : 10AWG

Packing : Box

battery : LIPO

Contact Now

Flier RC hobby 7S RC 180A for high brushless speed electric rc Boat

Basic information

Voltage

Current

Size(mm)

weight(g)

BEC (Volts/Amps)

Box Programming support

Computer Programming support

Firmware update

3-7S

180A

120*60*25

150g

OPTO

Yes

Yes

Yes

Feature:

1. Design for airplane, more functions

2. Battery voltage from 12V to 28V for super high voltage version.

3. Two way communication while connecting it with computer.

4. Firmware can be upgrade by user.

5. Motor cable can be inspected while Connecting the power battery

6. Simply set function value by Prog-Box or by PC via USB link wire.

7. Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

8. Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V

9. Reverse function. the delay time of reverse is adjustable

10. The power of the motor forward/ reverse can be set.

11. Automatically detection the throttle route or can be set a fixed number by manual operation.

12. Auto cut off the power within 3 seconds if no radio signs.

13. Timing setting may be adjusted (0°-30°) to suit the motor type.

Lipo Battery Brushless RC Boat ESC 7S 180A With Reverse Function

1. Reverse: On/Off.

2. Timing:,,,,4°……30°.

3. Frequency: 8KHz, 16 KHz, 32 KHz.

4. Acceleration: Soft / Medium / Hard.

5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.

6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.

7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.

8. LiIo/Pol CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.

9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V

10. Cut Off Type::Slow down,Hard. l

11. Power limited forward: Off, 75%, 50%, 25%.

12. Power limited reverse: Off, 75%, 50%, 25%.

13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.

14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.

15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.

16. Throttle curve: Logarithmical,Linear,Exponential.

17. Rotation direction: Left, Right.

18. Timing monitor (TIMING MONTITOR): ON, Off.

Note:the red mark is the factory default value,you can setting function value by youself.

The company's ESC products cover ESC for marine, ESC for airplane, ESC for helicopter, ESC for multicopter, ESC foe car, ESC for surfboards, ESC for skateboards and Industrial controller.

Power ranges from 1000W to 30KW, and low voltage series voltage ranges from 12V to 30V(2S-8S).middle voltage series voltage ranges from 30V to 60V(8S-14S).high voltage series voltage ranges from 60V to 120V(14S-28S).supper high voltage series voltage ranges from 120V to 500V. the current ranges from 100 amps to 500 amps.Ultra-high ESC products are our absolute strength

Our products have independent intellectual property rights. If necessary, we can make firmware according to customer's requirements. Our company also has a strong ability to develop new products, and has developed or is developing some related electronic products, so as to maintain the technological leading edge in this field.

The company's products have strict quality control standards, to ensure the optimization of product quality. At the same time, according to the differences of customer needs, we constantly enrich product categories, improve product functions, improve product quality and optimize product mix in order to provide customers with professional products and quality services.

Lipo Battery Brushless RC Boat ESC 7S 180A With Reverse Function

Lipo Battery Brushless RC Boat ESC 7S 180A With Reverse Function

Trade Terms:

1. Payment :T/T ,Paypal,West union .

2. Production lead time :5 days for 100-200 pcs ,10days for 200-300pcs .

3. Sample can be delivered within 3 days.

4. Discounts are offered based on order quantities .

5. MOQ: 2 pcs.

Shipping&Return:

1. Items will be shipped within 3 business day after payment completed received.


2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.

3. Warranty Period is 2 yrs for this item.

4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.


5. All emails will be answered within 1 working day.
